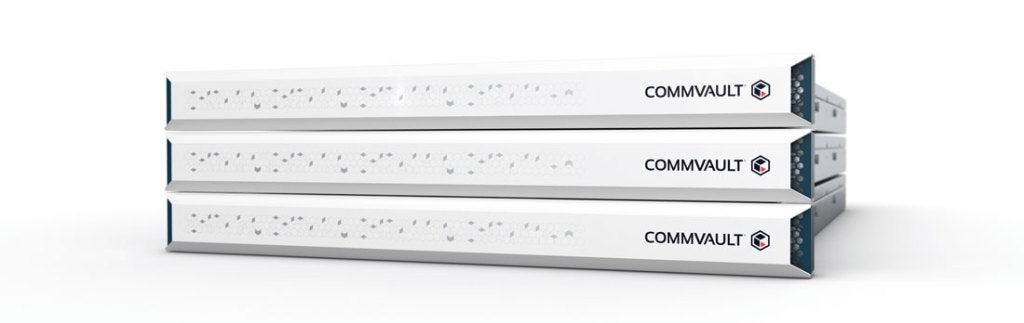

Commvault HyperScale™ Appliance 1300

Technical specifications

Commvault HyperScale™ Appliances are a data protection solution that tightly integrates compute, storage, and Commvault Complete™ Backup and Recovery software with a scale-out infrastructure. Built on Commvault’s industry-leading technology, it allows you to significantly decrease complexity and cost while increasing both scalability and IT agility across the data center and the cloud. Because this solution is pre-designed, built, sold and supported by Commvault, you’ll save time in hardware acquisition, installation and integration, daily management and patching and updating. Plus, you’ll enjoy streamlined, single-call support for the entire solution.

Commvault HyperScale™ Appliance 1300 is ideal for enterprise environments requiring simple, easy-to-use solutions for data protection starting at 29 TB usable capacity.

Commvault HyperScale Appliance 1300 is a modern solution for today’s enterprises; providing on-premises scaleout backup and recovery with cloud-like scale, flexibility and cost.

The Commvault HyperScale Appliance delivers Commvault’s industry-leading technology on a scale-out infrastructure for cloud-like scale, flexibility and cost on-premises.

Commvault HyperScale Appliance 1300 technical specifications

 Per Node Per Block (3 Nodes)
System capacity (RAW)1N/A48, 72, 96, 144 TB
System capacity (Usable)2N/A29, 43, 58, 87 TB
Hard disk driveN/A12 qty – SAS, 12 GB/s, 4TB, 7,200 rpm, 512n, hot-plug, 3.5-inch
12 qty – SAS, 12 GB/s, 6TB, 7,200 rpm, 512n, hot-plug, 3.5-inch
12 qty – SAS, 12 GB/s, 8TB, 7,200 rpm, 512n, hot-plug, 3.5-inch
12 qty – SAS, 12 GB/s, 12TB, 7,200 rpm, 512n, hot-plug, 3.5-inch
M.2-based flash storage150 GB450 GB
NVME PCIE capacity
(DDB/index cache)
2 TB6 TB
Memory128 GB DDR4384 GB DDR4
Compute2 x Intel Xeon Silver4108 8C 1.80 GHz6 x Intel Xeon Silver4108 8C 1.80 GHz
ChipsetIntel® C624
On-board network connectivity4 x 10 GbE4 x 1 GbE1 x 1 GbE iRMC12 x 10 GbE12 x 1 GbE6x 1 GbE iRMC
Operating environmentCommvault HyperScale Software
Optional add-in cards8 Gb Dual Port PCIe FC HBA12Gb SAS Dual Port PCIe HBA
Weightup to 16 kg(up to 36 lbs)up to 48 kg(up to 106 lbs)
Dimensions1 Rack Units483mm (Bezel) / 435mm (Body)x 770.7 mm x 43 mm(19” (Bezel) / 17.1” (Body) x 30.3” x 1.7”)3 Rack Units483mm (Bezel) / 435 mm (Body)x 770.7 mm x 43 mm(19” (Bezel) / 17.1” (Body) x 30.3” x 1.7”)
Mounting rack depth748.2 mm per node29.46” per node
Power supply2 x hot-plug power supply for redundancy per node450W hot-plug, 94% (Platinum efficiency), 100-240V, 50 / 60Hz
Rated voltage range100 V to 240 V (Platinum)200 V to 240 V (Titanium)N/A
Frequency50 Hz – 60 HzN/A
Max. rated current10.5 A / 5.0 AN/A
Effective power883 WN/A
Apparent power892 VAN/A
Heat Dissipation3179 KJ/h (3013 BTU/h)N/A
Main power fuse16 AN/A
Protection classIN/A
Operating ambient temperature 5 to 35 ºC (41 – 95 ºF)
Operation (3K2)5 ºC to 40 ºC (with ATD 40 ºC)5 ºC to 45 ºC (with ATD 45 ºC)10 ºC to 35 ºC (without ATD)
Transport (2K2)-25 ºC to 60 ºC
Operating relative humidity10 – 85 % (non condensing)
Warranty coverageOnsite Warranty – Next Business Day
Software maintenance4Premium Software Maintenance
Management toolsCommvault Command Center™, CLI, Easy Setup Wizard
Product safety and ergonomics compliance IEC 60950-1 2ed; am1 + am2
EN 60950-1 2ed; A1 + A2 + A11 + A12EN 62479ISO 9241-3EN 29241-3EK1-ITB2000:20xxCSA-C22.2 No. 60950-1-07 2ed; am1 + am2UL 60950-1 2ed; am1 + am2AS/NZS 60950-1CNS 14336-1GB 4943.1IS 13252-1
Electromagnetic compatibility CISPR 22 + CISPR 32CISPR 24
EN 55032 Class A EN 55024EN 61000-3-2EN 61000-3-3ETSI EN 300386 (on demand)FCC 47CFR part 15 Class A / ICES-003AS/NZS CISPR22 Class A AS/NZS CISPR32 Class A
CNS 13438 Class A GB 9254 / GB 17625.1VCCI Class A / JEITAKN 32 / KN 35
Global ROHS complianceCBRoHS (substance limitations in accordance with global RoHS regulationsWEEE (Waste electrical and electronical equipment)

Notes

  1. ALL CAPACITY VALUES ARE CALCULATED USING BASE10 (I.E., 1TB = 1,000,000,000,000 BYTES).

  2. USEABLE CAPACITY VALUE CALCULATED USING BASE2 (I.E., 1TB = 1,099,511,627,776 BYTES).

  3. THE 1 GBE PORTS ARE RESERVED FOR ROUTING MANAGEMENT NETWORK TRAFFIC, WHEN THE 10GBE DATA NETWORK IS NON-ROUTABLE.

  4. SOFTWARE MAINTENANCE IS BASED ON SUBSCRIPTION LICENSING AND PRICING.
