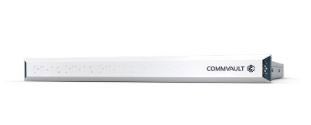

Commvault Remote Office Appliance 1100

Technical Specifications

Commvault Remote Office Appliance provides the powerful simplicity of Commvault in a cost-effect backup and recovery solution. As part of a Commvault Complete™ Backup & Recovery environment, it allows customers to address the challenges of supporting remote and branch offices.

Remote and branch offices can be difficult to support due to limited or no on-site IT staff, complexity of integrating point products, and inconsistent policies and procedures. With your existing Commvault environment and the Remote Office Appliance, you can store, protect and use all of your data wherever it exists. It offers remote and small offices flexible and streamlined backup and recovery through a scale-up infrastructure and ranges from 5 to 15 TB of usable capacity. You can centrally manage local backups and recoveries and replicate copies to your central site for greater data protection. In addition, as a fully-integrated appliance it simplifies the acquisition, installation and support that often hinders remote staff or requires expensive professional services.

With the Commvault Remote Office Appliance, you can store, protect, manage and use all of your data wherever it exists; from remote offices to corporate offices and into the cloud.

Commvault Remote Office Appliance extends the powerful simplicity of Complete™ Backup & Recovery to protect and recover data wherever it exists; from remote offices to corporate offices and into the cloud.

Commvault Remote Office Appliance 1100 technical specifications

SYSTEM CAPACITY (RAW)124 TB
SYSTEM CAPACITY (USEABLE)2 4.5 or 14.5 TB
HARD DISK DRIVE3 qty. – SAS, 12 GB/s, 8 TB, 7,200 rpm, 512 n, hot-plug, 3.5″
M.2-BASED FLASH STORAGE240 GB
SATA SSD (DDB/index cache)960 GB
MEMORY 128 GB DDR4
COMPUTE2 x Intel Xeon Silver 4208 8C 2.10 GHz
Total 16 Cores
CHIPSET Intel® C624
ON-BOARD NETWORK CONNECTIVITY 42 x 1 GbE or 2 x 10 GbE Dual Port PCIe
OPERATING ENVIRONMENT Microsoft Windows 2019 Server
OPTIONAL ADD-IN CARDS16 Gbits/s Dual Port PCIe FC HBA
12 Gb/s SAS Dual Port PCIe HBA
WEIGHTup to 16 kg
(up to 36 lbs.)
DIMENSIONS1 rack unit
483 mm (bezel) / 435 mm (body)
x 770.7 mm x 43 mm
(19” (bezel) / 17.1” (body) x 30.3” x 1.7”)
MOUNTING RACK DEPTH748.2 mm per node
29.46” per node
POWER SUPPLY2 x hot-plug power supply for redundancy per node
450 W hot-plug, 94% efficiency, 100-240 V, 50 / 60 Hz
RATED VOLTAGE RANGE100 V to 240 V
FREQUENCY50 Hz – 60 Hz
MAX. RATED CURRENT10.5 A / 5.0 A
ACTIVE POWER (MAX. CONFIGURATION)883 W
APPARENT POWER (MAX. CONFIGURATION)892 VA
HEAT DISSIPATION3179 KJ/h (3013 BTU/h)
PROTECTION CLASSI
OPERATING AMBIENT TEMPERATURE 5 to 35 ° C (41 – 95 ° F)
OPERATION (3K2) TEMPERATURE5° C to 40° C (with ATD 40° C)
5° C to 45° C (with ATD 45° C)
10° C to 35° C (without ATD)
TRANSPORT (2K2) TEMPERATURE-25°C to 60°C
OPERATING RELATIVE HUMIDITY10 – 85 % (non-condensing)
WARRANTY COVERAGEOnsite Hardware Warranty – Next Business Day
SOFTWARE MAINTENANCE3Premium Software Maintenance
MANAGEMENT TOOLS Commvault Command Center, CLI, easy Setup Wizard
PRODUCT SAFETY AND ERGONOMICS COMPLIANCEInternational IEC 60950-1 2nd Edition am 1 + am 2
IEC 62368-1:2014 (Second Edition)
Europe
Safety: EN 60950-1 2nd Edition
EN 62368-1:2014
EN 62479
Ergonomics ISO 9241-3
EN 9241-3
EK1-ITB 2000:2019

USA/Canada CSA-C22.2 No. 60950-1-07 2nd Edition am 1+ am 2
CAN/CSA-C22.2 No. 62368-1:2014
UL 60950-1 2ed. am1 + am2
UL 62368-1:2014
Australia/New Zealand AS/NZS 62368.1
AS/NZS 60950.1
Taiwan CNS 14336-1
China GB 4943-1
India IS 13252-1
ELECTROMAGNETIC COMPATIBILITY International CISPR 32
CISPR 24
Europe EN 55032 Class A
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 300386 (on demand)

USA/Canada 47CFR part 15 Class A / ICES-003

Australia/New Zealand AS/NZS CISPR32 Class A
Taiwan CNS 13438 Class A
China GB 9245 / GB 17625
Japan VCCI Class A / JEITA
Korea KN 32 / KN 35
GLOBAL COMPLIANCE• CB
• RoHS (substance limitations in accordance with global RoHS regulations
• WEEE (waste electrical and electronical equipment)
  1. Raw capacity value calculated using Base10 (i.e., 1 TB = 1,000,000,000,000 bytes)
  2. Useable capacity value calculated using Base2 (i.e. 1 TB = 1,099,511,627,776 bytes).
  3. Software maintenance is based on subscription licensing and pricing
